PVC復合地板生產線分為三大類：
PVC composite board can be divided into three parts:
一，WPC復合地板生產線，是由PVC發泡板作為地板基材，再在發泡板表面貼合一層LVT層，壓花成各類地板；
First: WPC composite board: use PVC foaming board as the foundation and composites another layer of LVT and finally make all kinds of floor board.
二，SPC復合地板生產線，SPC環保地板是由擠出機擠出PVC的基材，用四輥壓延機組，分別把PVC彩膜+PVC耐磨層+PVC底膜，一次性壓貼復合而成的產品，工藝簡單、貼合靠熱量完成，不含膠水。SPC地板材料使用環保配方，不含重金屬、鄰苯二甲酸酯、甲醛等有害物質。
Second: SPC composite board extrusion line. SPC board is made up by the PVC foundation layer material, the four roller machine makes the PVC film layer, PVC anti-friction layer and PVC bottom layer pressed together. This product can be made one time. The four layers are formed by heat not glue, which makes this board environment friendly without heavy metal and formaldehyde.
三， LVT軟質復合地板生產線：生產線由擠出機擠出地板基材，再經過一套六輥復合機對基材與印刷層，耐磨層，防滑層進行同時復合，通過對放卷張力，耐磨層預熱的精確控制，達到放卷時不起皺，不收縮，不變形等效果，擠出復合生產效率高，產品質量穩定。
Third, LVT soft composite board extrusion line: The LVT board is also made up by a foundation board, after compositing by one six roller calendar, the printing layer, anti- wear layer and anti-friction layer are composited together. By the accurate controlling for the rolling strength, the product will have no wrinkles, no shrinkage and no deformation, high efficiency production and stable quality.
WPC復合地板

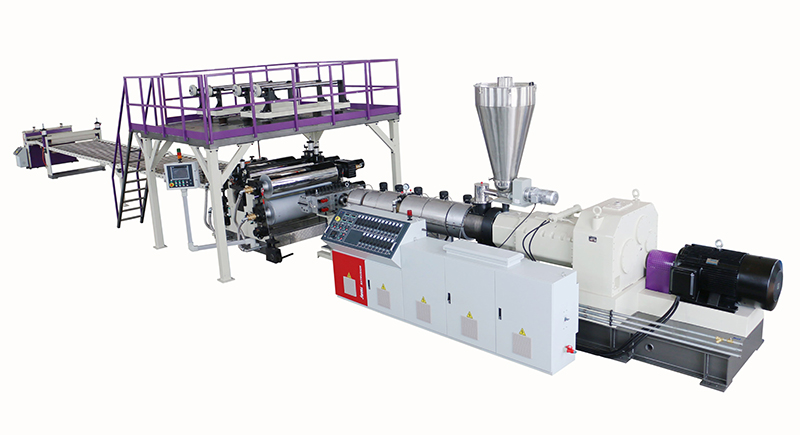

WPC復合地板基材生產線：
WPC復合地板生產線主要技術參數 WPC composite floor production line
Main technical specification
機型 Model | SJZ80/156 |
適用原料 Material | PVC |
制品寬度 Products width | 1220mm |
制品厚度 Products thickness | 2-8mm |
擠出機規格 Extruder specification | SJZ80/156 |
最大擠出量 Capacity (Max.) | 300KG/H |
主電機功率 Main motor power | 75KW |
備注：以上規格參數如有變更，恕不另行通知。Note:The specifications are subject to change without prior notice
SPC復合地板

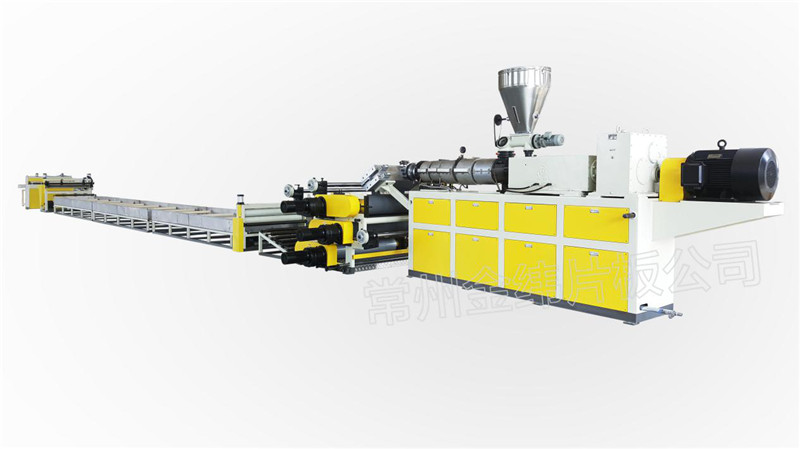

SPC復合地板生產線：
SPC復合地板生產線主要技術參數 SPC composite floor production line
Main technical specification
機型 Model | SJZ80/156 |
適用原料 Material | PVC |
制品寬度 Products width | 1220mm |
制品厚度 Products thickness | 2-8mm |
擠出機規格 Extruder specification | SJZ80/156 |
輥筒規格 Roller specification | ?450 |
輥筒數量 No of rolls | 4PS |
最大擠出量 Capacity (Max.) | 450KG/H |
主電機功率 Main motor power | 75KW |
備注：以上規格參數如有變更，恕不另行通知。Note:The specifications are subject to change without prior notice
LVT軟質復合地板
LVT軟質復合地板生產線：
LVT軟質復合地板生產線主要技術參數 The main technical parameters of LVT production line of soft composite floor
機型 Model | SJZ80/156 |
適用原料 Material | PVC |
制品寬度 Products width | 1400mm |
制品厚度 Products thickness | 1.5-4mm |
擠出機規格 Extruder specification | SJZ80/156 |
輥筒規格 Roller specification | ?450 |
輥筒數量 No of rolls | 6PS |
最大擠出量 Capacity (Max.) | 450KG/H |
主電機功率 Main motor power | 75KW |
備注：以上規格參數如有變更，恕不另行通知。Note:The specifications are subject to change without prior notice
